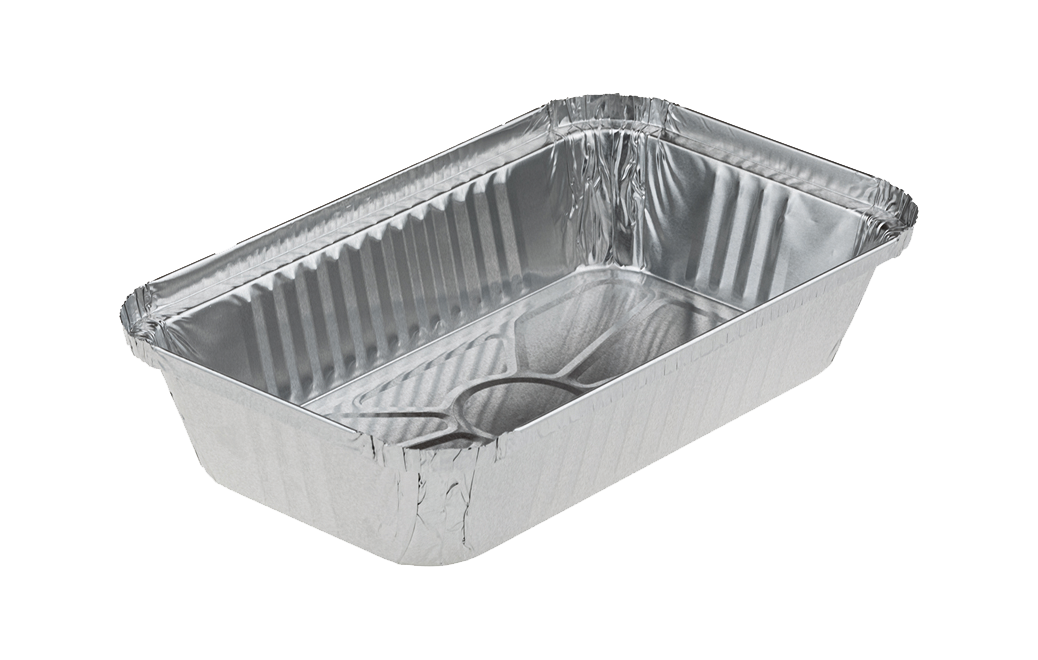

CH1000 10X100
Back to products
CH1060 6X100

CH1000B 8X100

246×147 mm

226×128 mm

204×105 mm

44 mm

54 mm

1000 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797301122
EAN code cart./Technifi 5410797301153
EAN code Palet
Volume 1000 cc
Top out 246×147 mm
Top in 226×128 mm
Base 204×105 mm
Useful Height 44 mm
Total Height 54 mm
Net Weight 13,53 gr
Model CH (2)
Gauge 68 µ
Alloy (*0) 8006 H24 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,1 mm
Temperature -40°C-350°C
#Pcs pro carton: 800
#Pcs pro bag 100
#Bags pro carton 8
#Cartons pro palette 20
#Cartons pro layer 4
#Layers Pro palette 5
#Pcs pro palette 16000
Carton dimension L.D.H 595x395x450mm
Tare carton (kg) 0,933
Net carton (kg) 10,824
Gross carton (kg) 11,757
Gross palette (kg) 265,14
Palette height (meter) 2,4
Country of Production Belgium

Downloads

Download Technical Sheet CH1000B 8X100
Declaration of Conformity (DoC) Aluminium Foil Containers
