CH2080 4X100
Back to products
CH3200 4X100

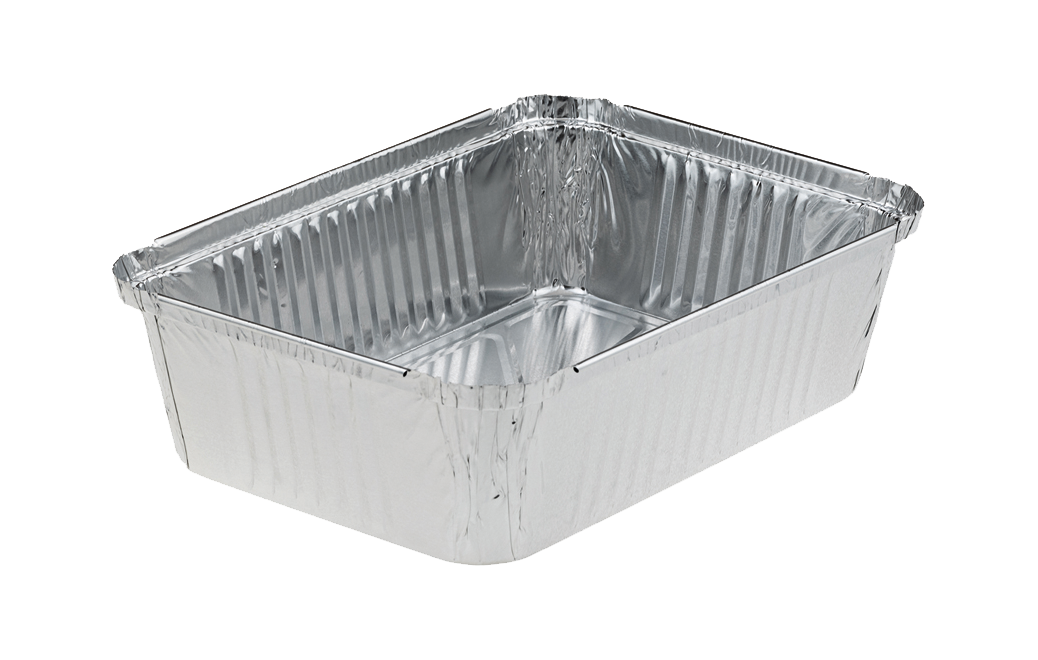

CH2300 7X100

257×187 mm

242×171 mm

220×14 mm

63 mm

74 mm

2300 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797301627
EAN code cart./Technifi 5410797301610
EAN code Palet
Volume 2300 cc
Top out 257×187 mm
Top in 242×171 mm
Base 220×14 mm
Useful Height 63 mm
Total Height 74 mm
Net Weight 31,32 gr
Model CH (2)
Gauge 90 µ
Alloy (*0) 8006 H24 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 3,0 mm
Temperature -40°C-350°C
#Pcs pro carton: 700
#Pcs pro bag 100
#Bags pro carton 7
#Cartons pro palette 12
#Cartons pro layer 3
#Layers Pro palette 4
#Pcs pro palette 8400
Carton dimension L.D.H 790x390x540mm
Tare carton (kg) 1,628
Net carton (kg) 21,924
Gross carton (kg) 23,552
Gross palette (kg) 312,624
Palette height (meter) 2,35
Country of Production Belgium

Downloads

Download Technical Sheet CH2300 7X100
Declaration of Conformity (DoC) Aluminium Foil Containers
