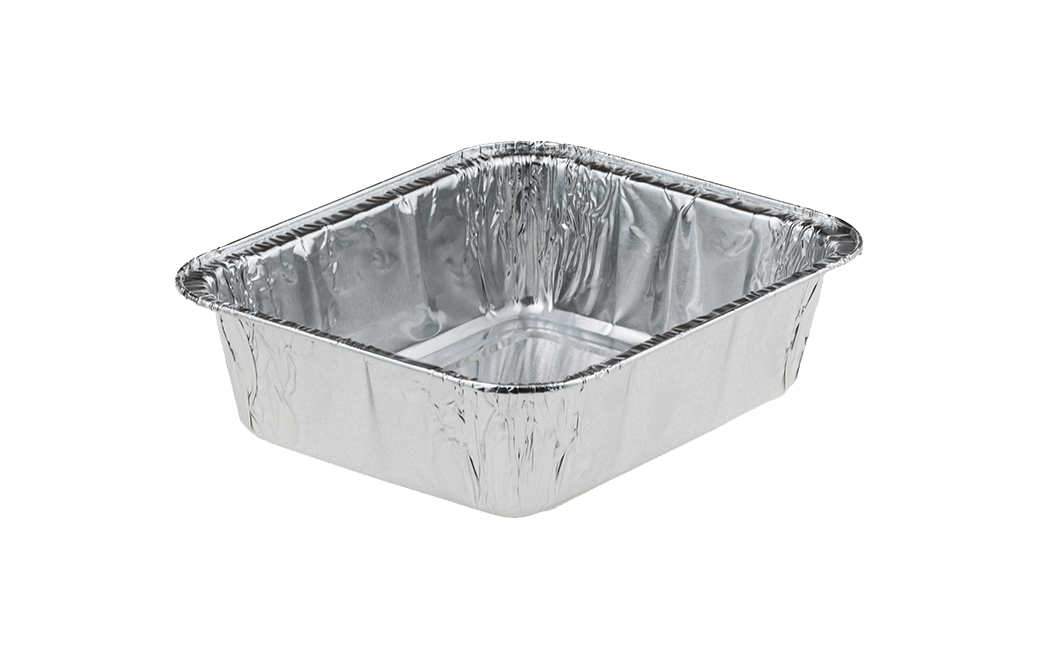

CR0420 690
Back to products
CR0475 7X100

CR0450 12X100

145×120 mm

129×104 mm

112×87 mm

39 mm

41 mm

450 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797201729
EAN code cart./Technifi 5410797201712
EAN code Palet
Volume 450 cc
Top out 145×120 mm
Top in 129×104 mm
Base 112×87 mm
Useful Height 39 mm
Total Height 41 mm
Net Weight 6,06 gr
Model CR (3)
Gauge 58 µ
Alloy (*0) 8666 H25 / 8006 H24 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 1,9 mm
Temperature -40°C-350°C
#Pcs pro carton: 1200
#Pcs pro bag 100
#Bags pro carton 12
#Cartons pro palette 24
#Cartons pro layer 6
#Layers Pro palette 4
#Pcs pro palette 28800
Carton dimension L.D.H 430x355x475mm
Tare carton (kg) 0,68
Net carton (kg) 7,272
Gross carton (kg) 7,952
Gross palette (kg) 220,848
Palette height (meter) 2,07
Country of Production Belgium

Downloads

Download Technical Sheet CR0450 12X100
Declaration of Conformity (DoC) Aluminium Foil Containers
