CR0560 12x100
Back to products

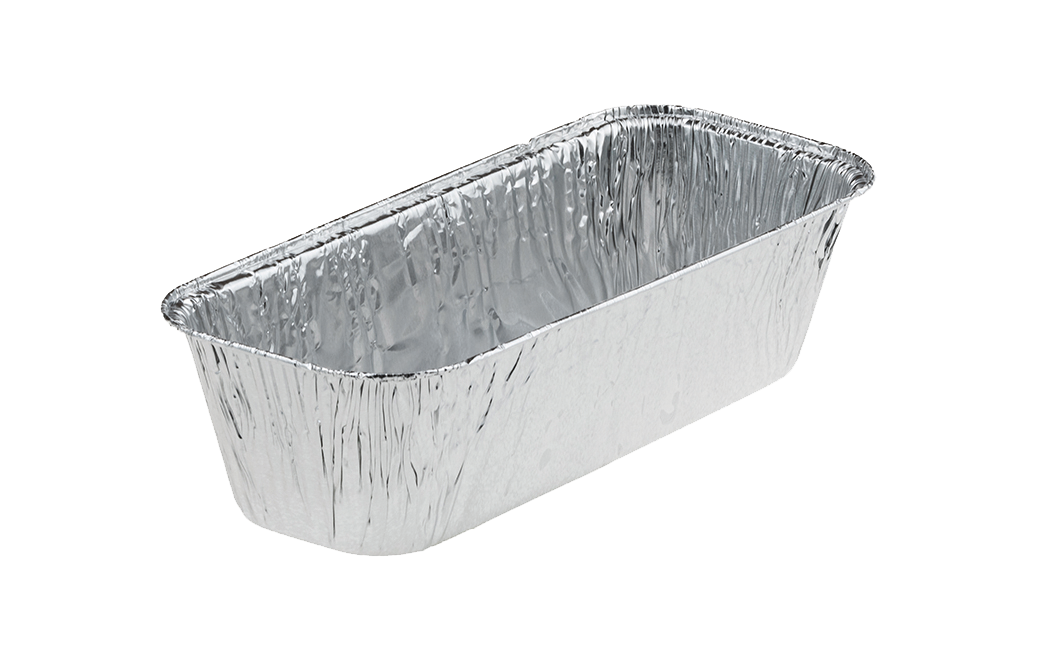

CR0575 2X100

CR0575 13X100

203×85 mm

192×74 mm

174×55 mm

50 mm

53 mm

575 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797210424
EAN code cart./Technifi 5410797210417
EAN code Palet
Volume 575 cc
Top out 203×85 mm
Top in 192×74 mm
Base 174×55 mm
Useful Height 50 mm
Total Height 53 mm
Net Weight 7,25 gr
Model CR (3)
Gauge 58 µ
Alloy (*0) 8006 H24 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,0 mm
Temperature -40°C-350°C
#Pcs pro carton: 1300
#Pcs pro bag 100
#Bags pro carton 13
#Cartons pro palette 20
#Cartons pro layer 4
#Layers Pro palette 5
#Pcs pro palette 26000
Carton dimension L.D.H 595x395x450mm
Tare carton (kg) 0,933
Net carton (kg) 9,425
Gross carton (kg) 10,358
Gross palette (kg) 237,16
Palette height (meter) 2,4
Country of Production Belgium

Downloads

Download Technical Sheet CR0575 13X100
Declaration of Conformity (DoC) Aluminium Foil Containers
