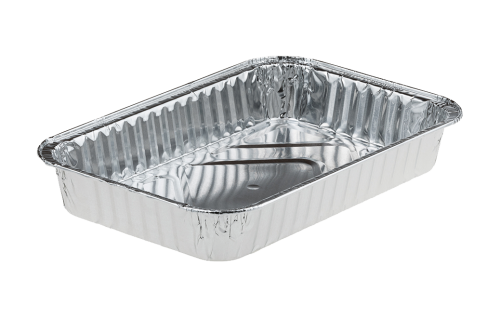

CR0675 10X100
Back to products

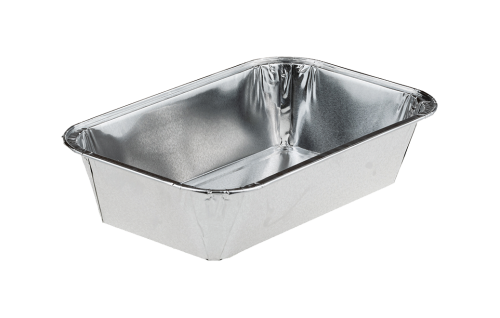

CR0700 4X100

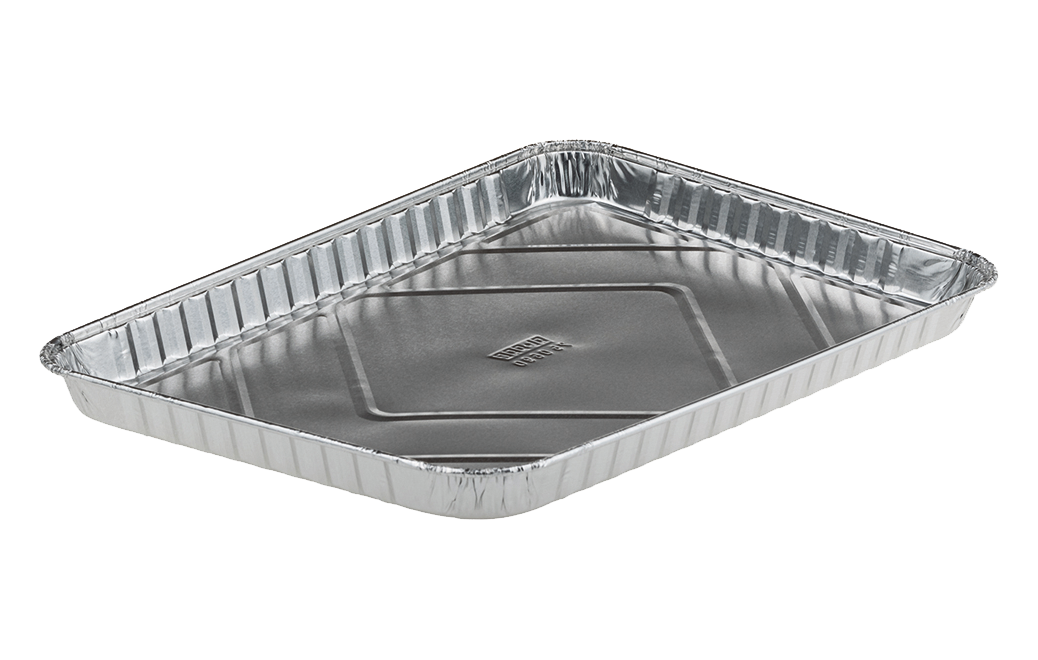

CR0690 1000

268×190 mm

257×178 mm

250×170 mm

17 mm

20 mm

690cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag
EAN code cart./Technifi 5410797210707
EAN code Palet
Volume 690cc
Top out 268×190 mm
Top in 257×178 mm
Base 250×170 mm
Useful Height 17 mm
Total Height 20 mm
Net Weight 12,91 gr
Model CR (3)
Gauge 72 µ
Alloy (*0) 8006 H24 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,9 mm
Temperature -40°C-350°C
#Pcs pro carton: 1000
#Pcs pro bag 1000
#Bags pro carton 1
#Cartons pro palette 20
#Cartons pro layer 4
#Layers Pro palette 5
#Pcs pro palette 20000
Carton dimension L.D.H 685x585x405mm
Tare carton (kg) 1,41641395692568
Net carton (kg) 12,91
Gross carton (kg) 14,3264139569257
Gross palette (kg) 316,528279138513
Palette height (meter) 2,16
Country of Production Europe

Downloads

Download Technical Sheet CR0690 1000
Declaration of Conformity (DoC) Aluminium Foil Containers
