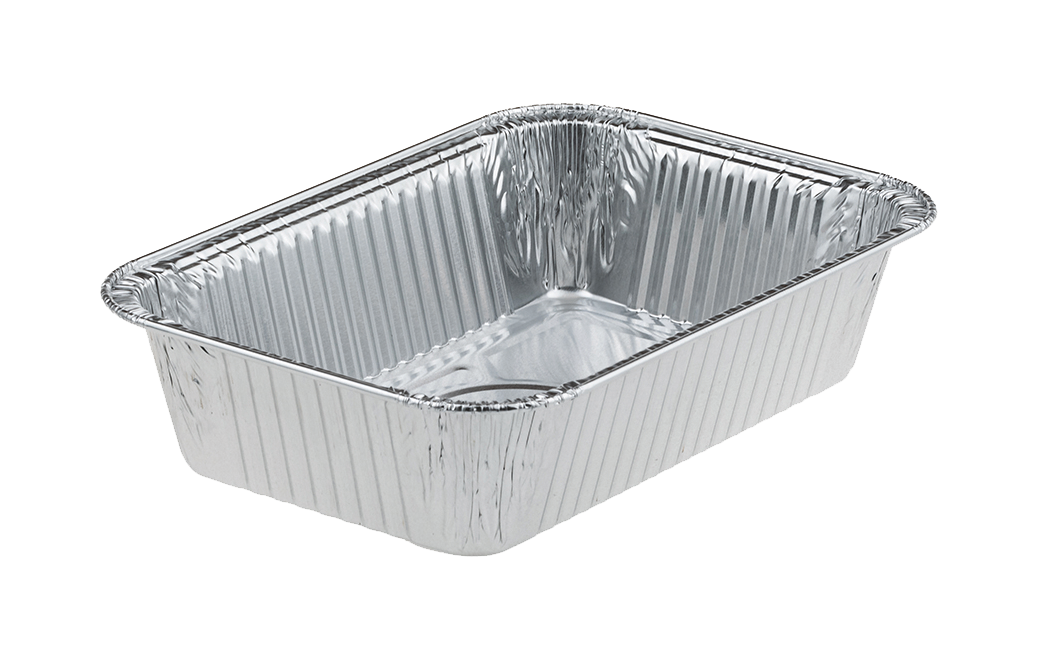

CR0825 10X100
Back to products
CR0935 10X100

CR0825T 10X100

201×137 mm

183×119 mm

160×95 mm

44 mm

47 mm

825 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797202528
EAN code cart./Technifi 5410797202511
EAN code Palet
Volume 825 cc
Top out 201×137 mm
Top in 183×119 mm
Base 160×95 mm
Useful Height 44 mm
Total Height 47 mm
Net Weight 10,62 gr
Model CR (3)
Gauge 65 µ
Alloy (*0) 8006 M H24 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,5 mm
Temperature -40°C-350°C
#Pcs pro carton: 1000
#Pcs pro bag 100
#Bags pro carton 10
#Cartons pro palette 15
#Cartons pro layer 3
#Layers Pro palette 5
#Pcs pro palette 15000
Carton dimension L.D.H 710x340x420mm
Tare carton (kg) 0,72
Net carton (kg) 10,62
Gross carton (kg) 11,34
Gross palette (kg) 200,1
Palette height (meter) 2,25
Country of Production Belgium

Downloads

Download Technical Sheet CR0825T 10X100
Declaration of Conformity (DoC) Aluminium Foil Containers
