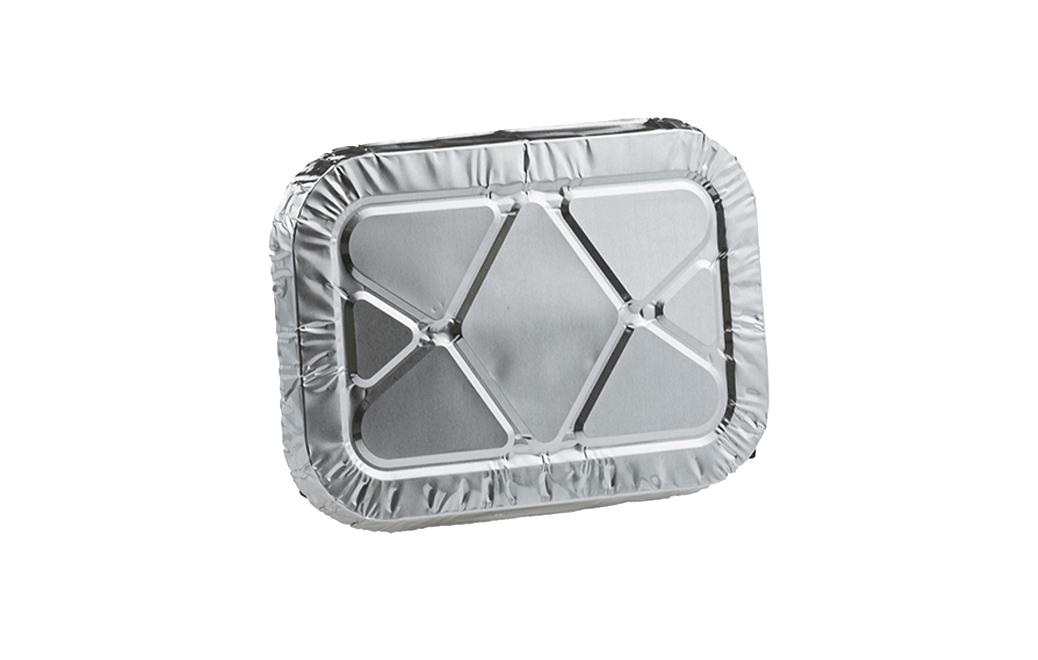

LA-SP450-1000
Back to products
01
LA-SPM218-300

LA-SP450-10X100

160X110 mm

–

165X115 mm

–

9 mm

–

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797600027
EAN code cart./Technifi 5410797600010
EAN code Palet
Volume
Top out 160X110 mm
Top in mm
Base 165X115 mm
Useful Height 0 mm
Total Height 9 mm
Net Weight 3,04 gr
Model LA (6)
Gauge 48 µ
Alloy (*0) 8006 H24/3003 H24 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge –
Temperature -40°C-350°C
#Pcs pro carton: 1000
#Pcs pro bag 100
#Bags pro carton 10
#Cartons pro palette 42
#Cartons pro layer 4+2R
#Layers Pro palette 8 + 5
#Pcs pro palette 42000
Carton dimension L.D.H 450x390x275mm
Tare carton (kg) 0,568
Net carton (kg) 3,04
Gross carton (kg) 3,608
Gross palette (kg) 181,536
Palette height (meter) 2,4
Country of Production Belgium

Downloads

Download Technical Sheet LA-SP450-10X100
Declaration of Conformity (DoC) Aluminium Foil Containers
