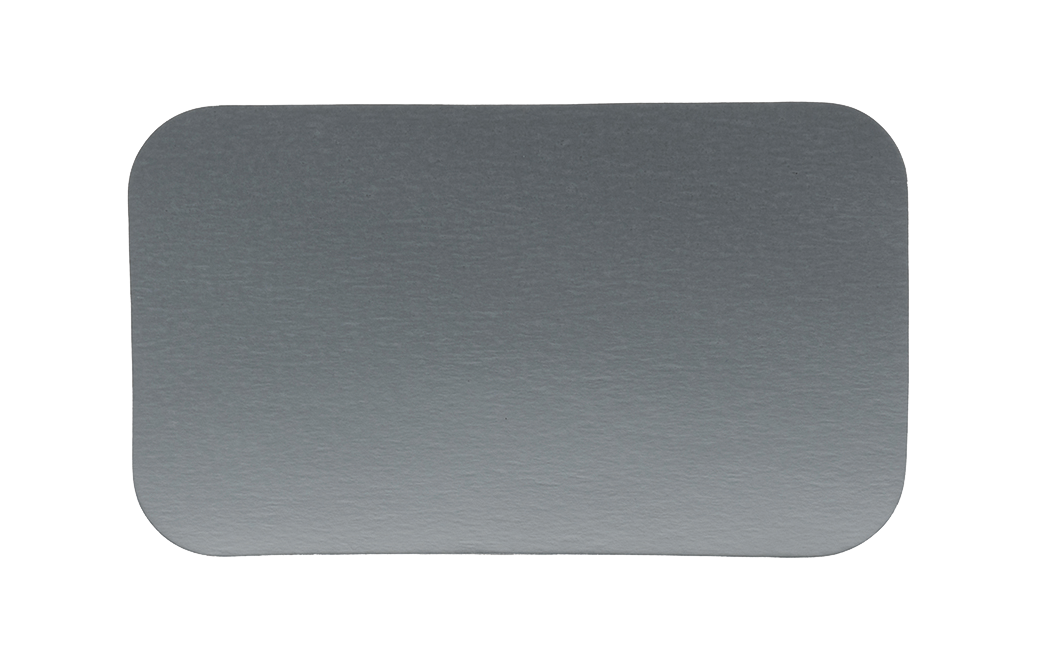

LK-CH0570-10X100
Back to products
LK-CH0700-10X100

LK-CH0675-10X100

217×127 mm

–

–

–

–

–

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797701021
EAN code cart./Technifi 5410797701014
EAN code Palet
Volume
Top out 217×127 mm
Top in mm
Base mm
Useful Height mm
Total Height mm
Net Weight 7,96 gr
Model LK (2)
Gauge 410 µ
Alloy (*0) ALU/PE/CARTON (0)
Lubrication
Holes NO
Diameter
Colors in/out ALU/KRT
Rolled edge
Temperature -20°C-150°C
#Pcs pro carton: 1000
#Pcs pro bag 100
#Bags pro carton 10
#Cartons pro palette 72
#Cartons pro layer 8
#Layers Pro palette 9
#Pcs pro palette 72000
Carton dimension L.D.H 330X250X215mm
Tare carton (kg) 0,28
Net carton (kg) 7,96
Gross carton (kg) 8,24
Gross palette (kg) 623,28
Palette height (meter) 1,65
Country of Production Europe

Downloads

Download Technical Sheet LK-CH0675-10X100
Declaration of Conformity (DoC) ALU /CARTON Lids
