RH0210 5X100
Back to products
RR0072 10X100

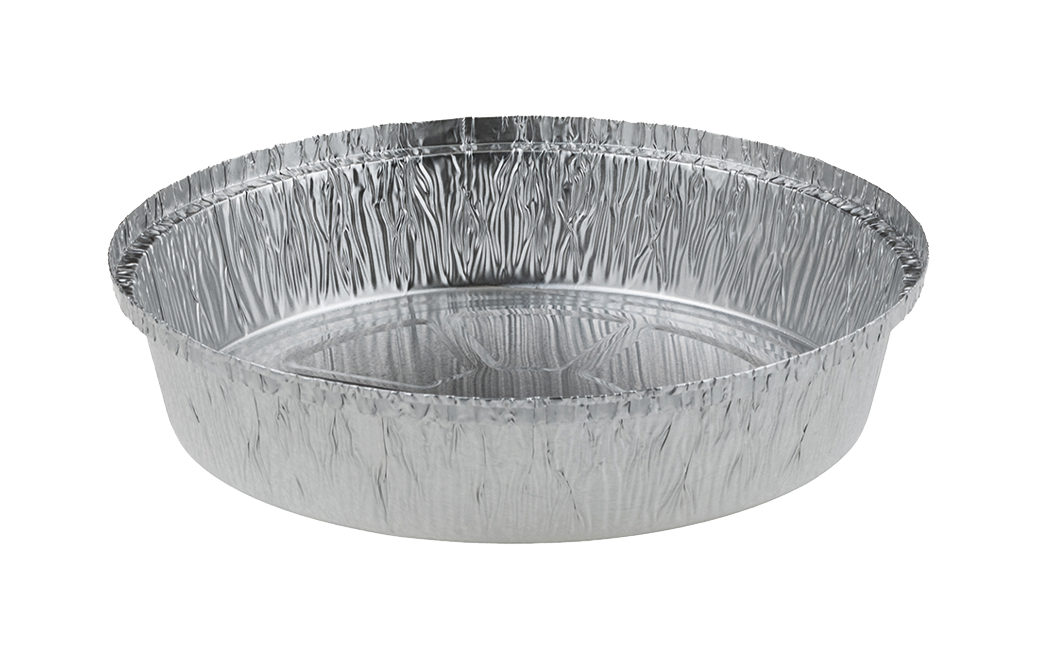

RH0230 500

230 mm

215 mm

196 mm

41 mm

49 mm

1400 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag
EAN code cart./Technifi 5410797105409
EAN code Palet
Volume 1400 cc
Top out 230 mm
Top in 215 mm
Base 196 mm
Useful Height 41 mm
Total Height 49 mm
Net Weight 16,45 gr
Model RH (4)
Gauge 78 µ
Alloy (*0) 8666 H25/8006 H24 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge
Temperature -40°C-350°C
#Pcs pro carton: 500
#Pcs pro bag 500
#Bags pro carton 1
#Cartons pro palette 12
#Cartons pro layer 3
#Layers Pro palette 4
#Pcs pro palette 6000
Carton dimension L.D.H 730x390x550mm
Tare carton (kg) 1,67
Net carton (kg) 8,225
Gross carton (kg) 9,895
Gross palette (kg) 148,74
Palette height (meter) 2,36
Country of Production Europe

Downloads

Download Technical Sheet RH0230 500
Declaration of Conformity (DoC) Aluminium Foil Containers
