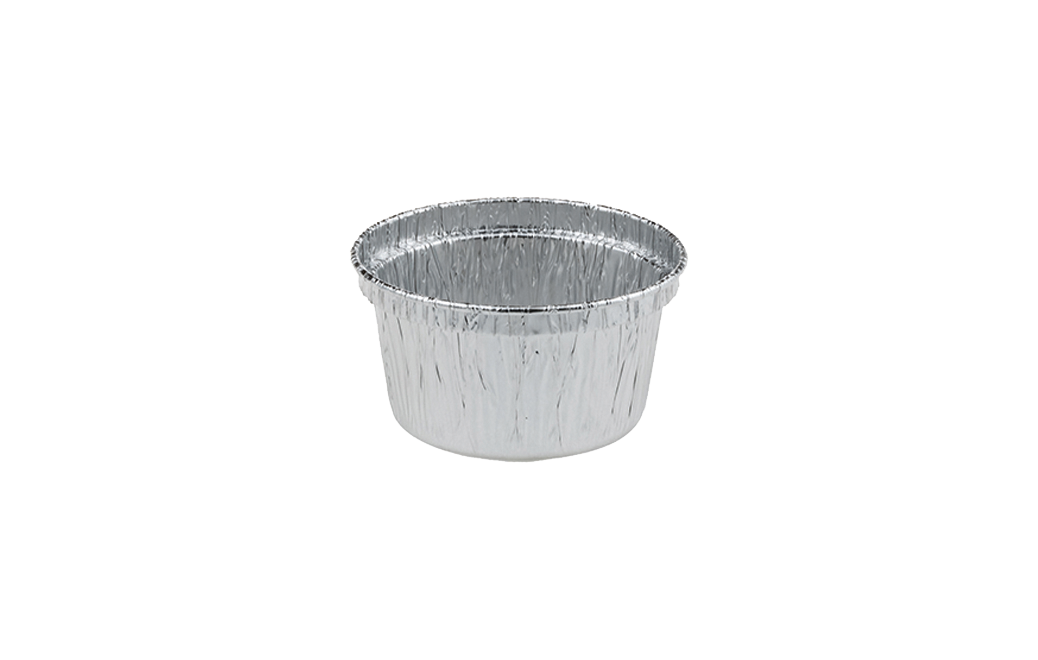

RR0072 10X100
Back to products
RR0079 20X100

RR0074 10X100

75 mm

65 mm

55 mm

32 mm

40 mm

90 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797105829
EAN code cart./Technifi 5410797105812
EAN code Palet
Volume 90 cc
Top out 75 mm
Top in 65 mm
Base 55 mm
Useful Height 32 mm
Total Height 40 mm
Net Weight 2,39 gr
Model RR (5)
Gauge 50 µ
Alloy (*0) 8006 H24 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,0 mm
Temperature -40°C-350°C
#Pcs pro carton: 1000
#Pcs pro bag 100
#Bags pro carton 10
#Cartons pro palette 42
#Cartons pro layer 6
#Layers Pro palette 7
#Pcs pro palette 42000
Carton dimension L.D.H 385x385x315mm
Tare carton (kg) 0,568
Net carton (kg) 2,39
Gross carton (kg) 2,958
Gross palette (kg) 154,236
Palette height (meter) 2,34
Country of Production Belgium

Downloads

Download Technical Sheet RR0074 10X100
Declaration of Conformity (DoC) Aluminium Foil Containers
