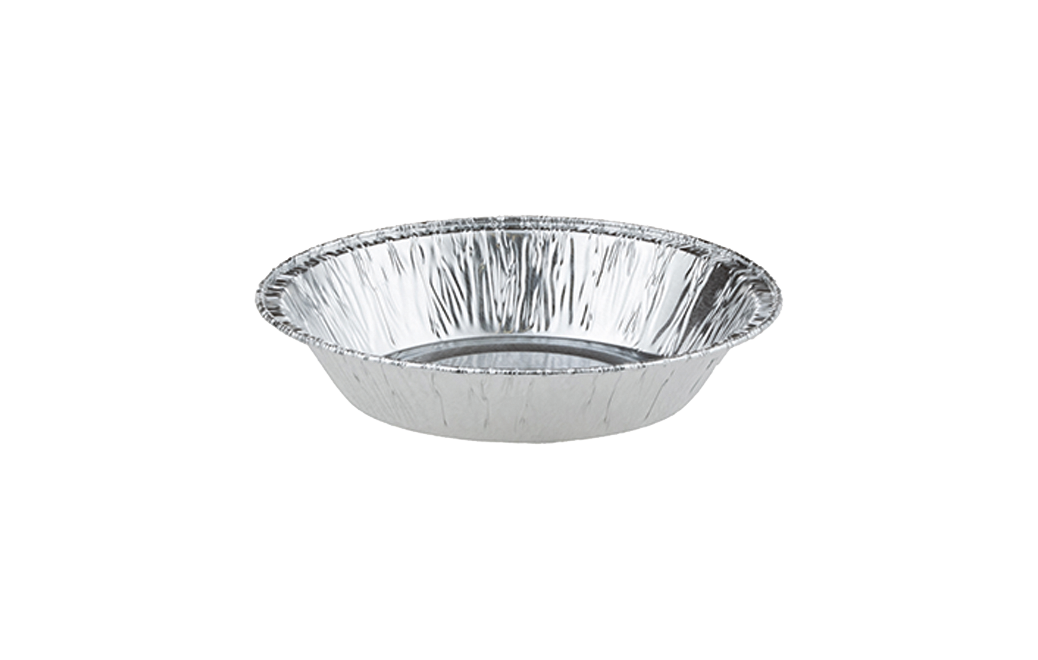

RR0093 500
Back to products
RR0100 30X100

RR0093PERF- E-40800

93 mm

84 mm

62 mm

17 mm

19 mm

80 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag
EAN code cart./Technifi 5410797104846
EAN code Palet
Volume 80 cc
Top out 93 mm
Top in 84 mm
Base 62 mm
Useful Height 17 mm
Total Height 19 mm
Net Weight 1,36 gr
Model RR (5)
Gauge 44 µ
Alloy (*0) 8006 H24 (0)
Lubrication (1)
Holes YES
Diameter 2mm
Colors in/out ALU/ALU
Rolled edge 1,5 mm
Temperature -40°C-350°C
#Pcs pro carton: 40800
#Pcs pro bag 40800
#Bags pro carton 1
#Cartons pro palette 1
#Cartons pro layer 1
#Layers Pro palette 1
#Pcs pro palette 40800
Carton dimension L.D.H 1200x800x900mm
Tare carton (kg) 51
Net carton (kg) 55,488
Gross carton (kg) 106,488
Gross palette (kg) 136,488
Palette height (meter) 0,9
Country of Production Belgium

Downloads

Download Technical Sheet RR0093PERF- E-40800
Declaration of Conformity (DoC) Aluminium Foil Containers
