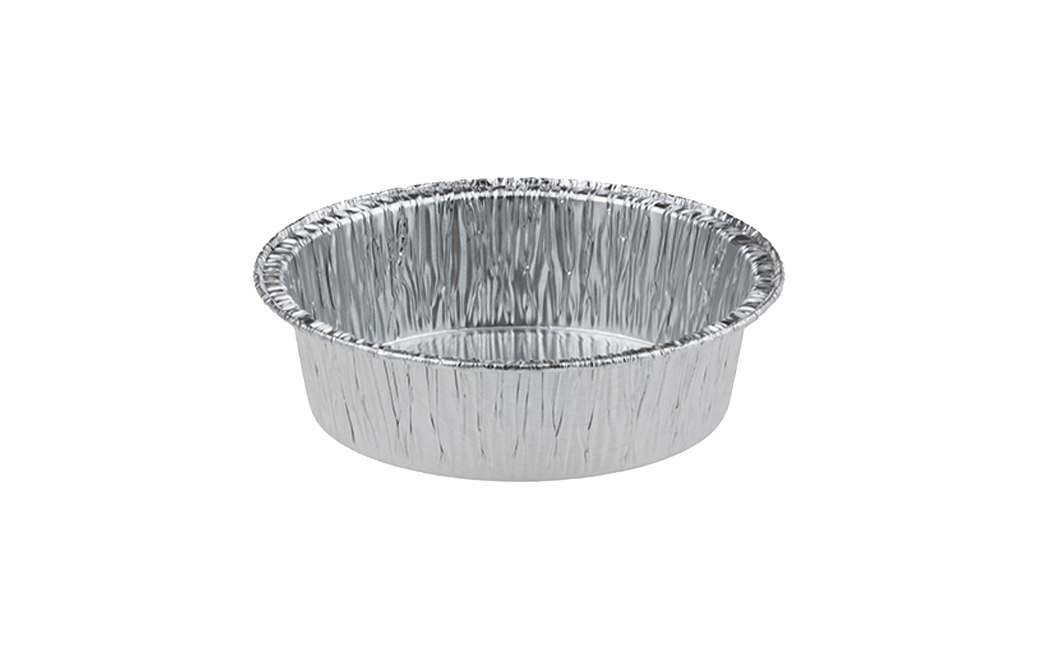

RR0111 20X100
Back to products
RR0111 LAQUE E-19430

RR0111 E-19430

111 mm

98 mm

87 mm

29 mm

31 mm

200 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag
EAN code cart./Technifi 5410797100435
EAN code Palet
Volume 200 cc
Top out 111 mm
Top in 98 mm
Base 87 mm
Useful Height 29 mm
Total Height 31 mm
Net Weight 2,94 gr
Model RR (5)
Gauge 48 µ
Alloy (*0) 8006 H24/3003 H24 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,2 mm
Temperature -40°C-350°C
#Pcs pro carton: 19430
#Pcs pro bag 19430
#Bags pro carton 1
#Cartons pro palette 1
#Cartons pro layer 1
#Layers Pro palette 1
#Pcs pro palette 19430
Carton dimension L.D.H 1200x800x900mm
Tare carton (kg) 51
Net carton (kg) 57,1242
Gross carton (kg) 108,1242
Gross palette (kg) 138,1242
Palette height (meter) 0,9
Country of Production Belgium

Downloads

Download Technical Sheet RR0111 E-19430
Declaration of Conformity (DoC) Aluminium Foil Containers
