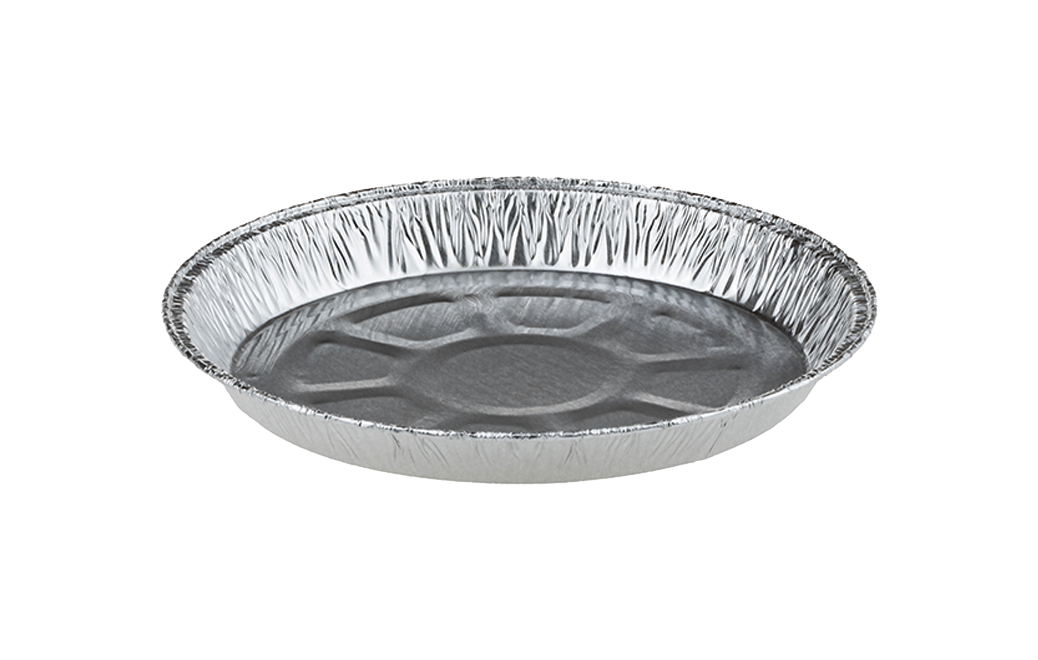

RR0138PERF E-13500
Back to products
RR0160 11x140

RR0155 16X100

155 mm

145 mm

125 mm

16 mm

18 mm

230 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797100824
EAN code cart./Technifi 5410797100817
EAN code Palet
Volume 230 cc
Top out 155 mm
Top in 145 mm
Base 125 mm
Useful Height 16 mm
Total Height 18 mm
Net Weight 3,31 gr
Model RR (5)
Gauge 48 µ
Alloy (*0) 8006 H24/3003 H24 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,1 mm
Temperature -40°C-350°C
#Pcs pro carton: 1600
#Pcs pro bag 100
#Bags pro carton 16
#Cartons pro palette 20
#Cartons pro layer 4
#Layers Pro palette 5
#Pcs pro palette 32000
Carton dimension L.D.H 595x395x450mm
Tare carton (kg) 0,933
Net carton (kg) 5,296
Gross carton (kg) 6,229
Gross palette (kg) 154,58
Palette height (meter) 2,41
Country of Production Belgium

Downloads

Download Technical Sheet RR0155 16X100
Declaration of Conformity (DoC) Aluminium Foil Containers
