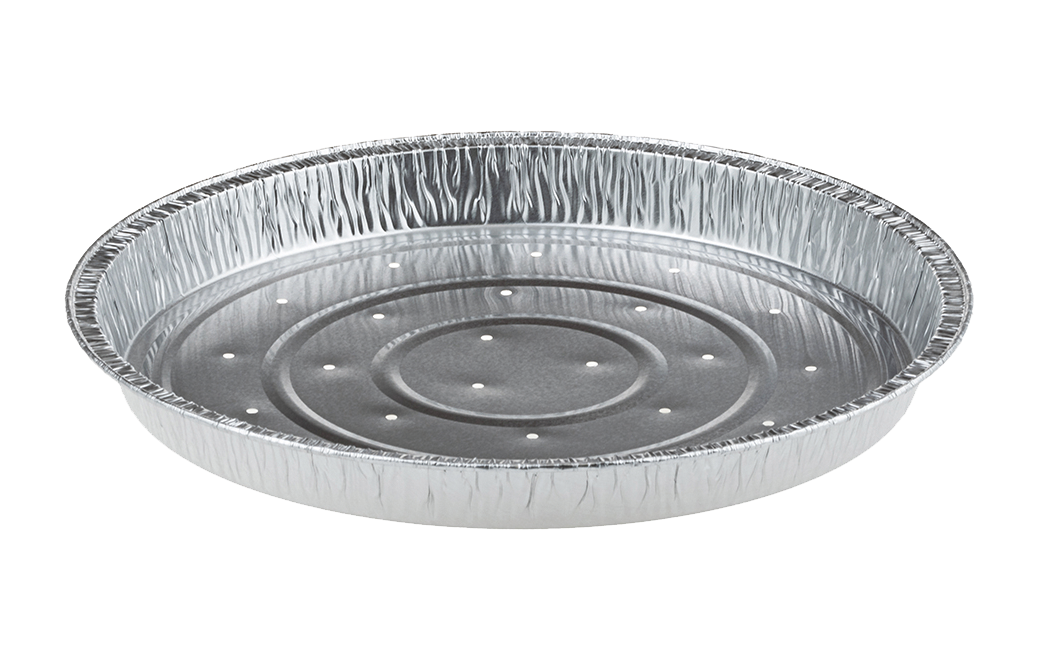

RR0247B 4X100
Back to products
RR0247PAST E-3770

RR0247PAST 600

247 mm

230 mm

217 mm

23 mm

25 mm

965 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag
EAN code cart./Technifi 5410797102903
EAN code Palet
Volume 965 cc
Top out 247 mm
Top in 230 mm
Base 217 mm
Useful Height 23 mm
Total Height 25 mm
Net Weight 10,77 gr
Model RR (5)
Gauge 58 µ
Alloy (*0) 8006 H24/3003 H24 (0)
Lubrication (1)
Holes YES
Diameter 3mm
Colors in/out ALU/ALU
Rolled edge 2,5 mm
Temperature -40°C-350°C
#Pcs pro carton: 600
#Pcs pro bag 600
#Bags pro carton 1
#Cartons pro palette 16
#Cartons pro layer 4
#Layers Pro palette 4
#Pcs pro palette 9600
Carton dimension L.D.H 590x390x475mm
Tare carton (kg) 0,829
Net carton (kg) 6,462
Gross carton (kg) 7,291
Gross palette (kg) 146,656
Palette height (meter) 2,07
Country of Production Belgium

Downloads

Download Technical Sheet RR0247PAST 600
Declaration of Conformity (DoC) Aluminium Foil Containers
