SM2H 5X100
Back to products
SM3H 5X100

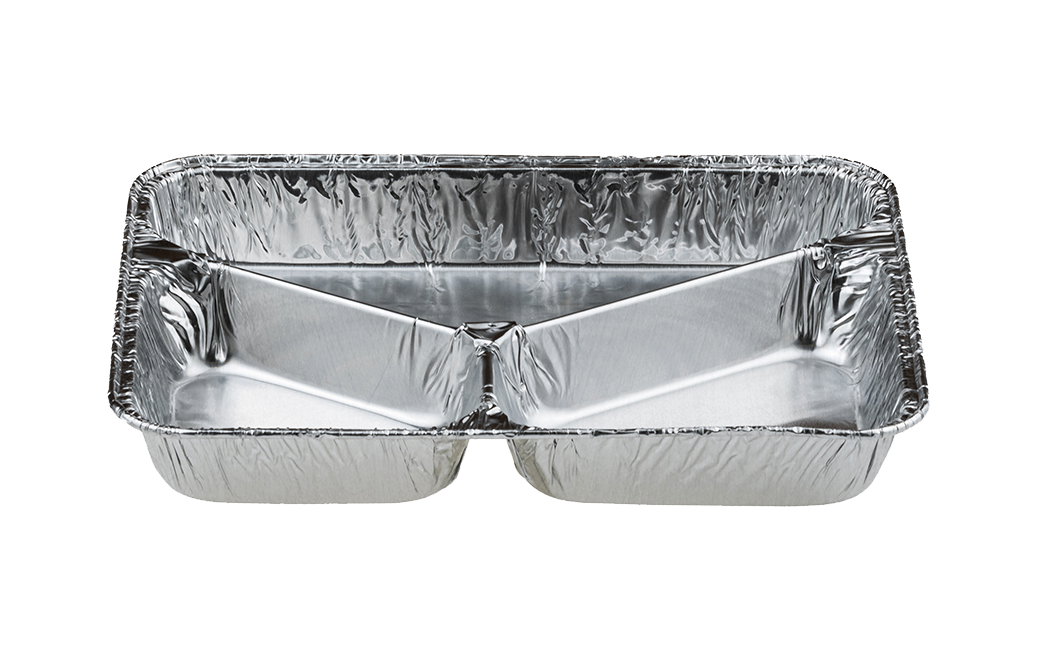

SM3B 5X100

227×174 mm

213×98-113×113-100×95 mm

196×82-82×80-82×80 mm

30 mm

32 mm

404+230+165 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797403321
EAN code cart./Technifi 5410797403352
EAN code Palet
Volume 404+230+165 cc
Top out 227×174 mm
Top in 213×98-113×113-100×95 mm
Base 196×82-82×80-82×80 mm
Useful Height 30 mm
Total Height 32 mm
Net Weight 15,45 gr
Model S (8)
Gauge 73 µ
Alloy (*0) 8666 H21 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,5 mm
Temperature -40°C-350°C
#Pcs pro carton: 500
#Pcs pro bag 100
#Bags pro carton 5
#Cartons pro palette 24
#Cartons pro layer 4
#Layers Pro palette 6
#Pcs pro palette 12000
Carton dimension L.D.H 590x390x355mm
Tare carton (kg) 0,678
Net carton (kg) 7,725
Gross carton (kg) 8,403
Gross palette (kg) 231,672
Palette height (meter) 2,28
Country of Production Belgium

Downloads

Download Technical Sheet SM3B 5X100
Declaration of Conformity (DoC) Aluminium Foil Containers
