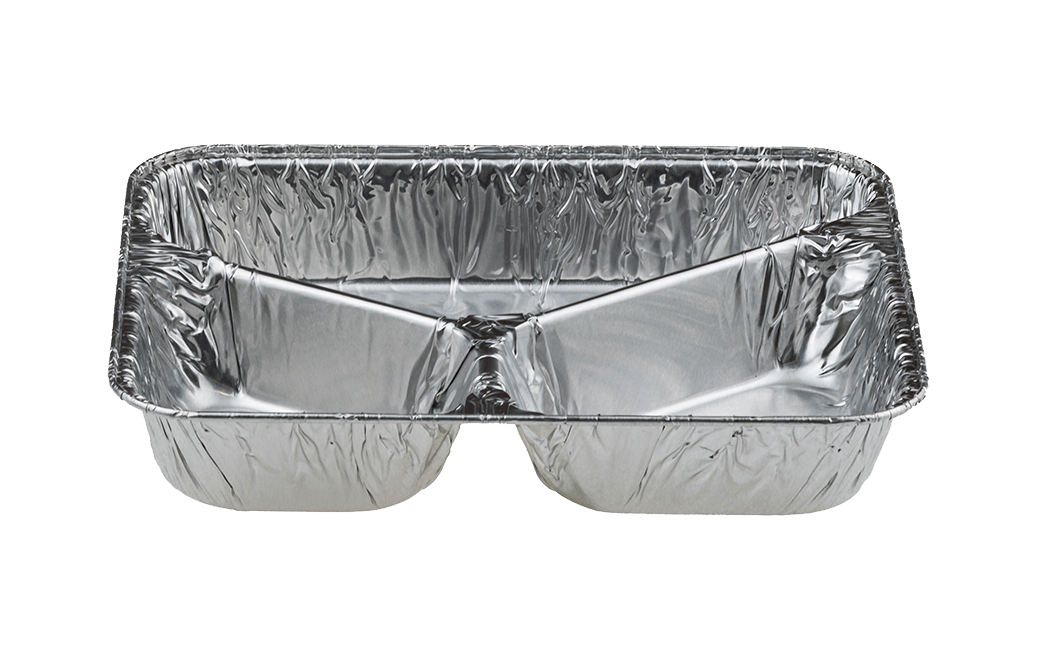

SM3H-L 5X100

225×175 mm

210×100-140×95-117×84 mm

177×75-100×66-75×56 mm

38 mm

40 mm

450+280+190 cc

EAN code Bag 5410797404625
EAN code cart./Technifi 5410797404618
EAN code Palet
Volume 450+280+190 cc
Top out 225×175 mm
Top in 210×100-140×95-117×84 mm
Base 177×75-100×66-75×56 mm
Useful Height 38 mm
Total Height 40 mm
Net Weight 19,75 gr
Model S (8)
Gauge 85 µ
Alloy (*0) 8666 H21 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,7 mm
Temperature -40°C-350°C
#Pcs pro carton: 500
#Pcs pro bag 100
#Bags pro carton 5
#Cartons pro palette 16
#Cartons pro layer 4
#Layers Pro palette 4
#Pcs pro palette 8000
Carton dimension L.D.H 590x390x475mm
Tare carton (kg) 0,829
Net carton (kg) 9,875
Gross carton (kg) 10,704
Gross palette (kg) 201,264
Palette height (meter) 2,03
Country of Production Belgium
Download Technical Sheet SM3H-L 5X100
Declaration of Conformity (DoC) Aluminium Foil Containers
