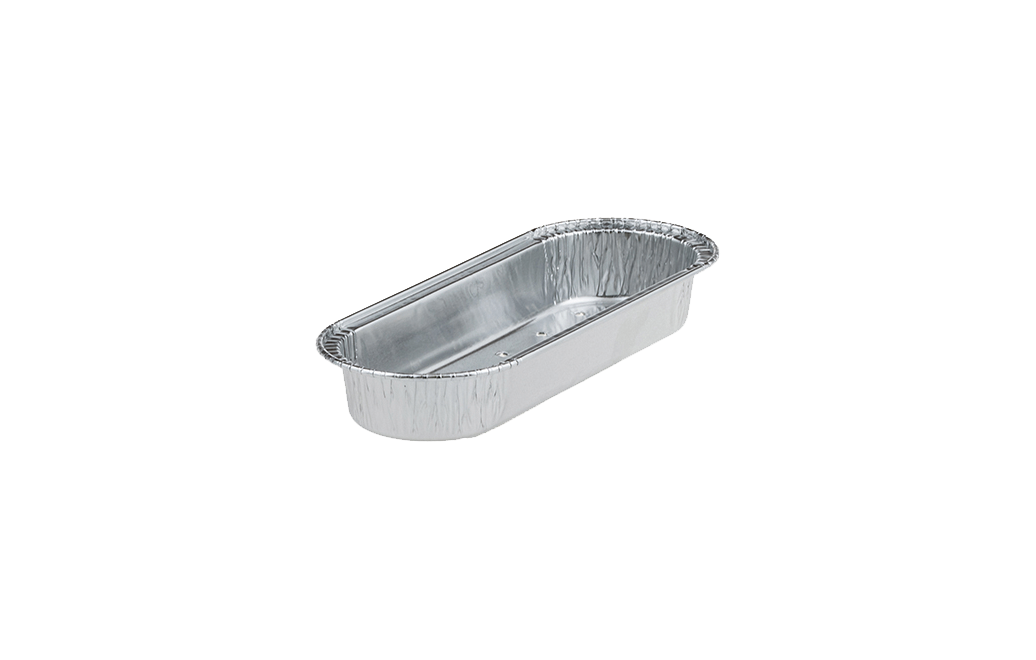

SPECLPERF-E-28500
Back to products
SPESC 10X100

SPECLPERF-E-31350

152×57 mm

140×45 mm

133×40 mm

20 mm

22 mm

110 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag
EAN code cart./Technifi 5410797610088
EAN code Palet
Volume 110 cc
Top out 152×57 mm
Top in 140×45 mm
Base 133×40 mm
Useful Height 20 mm
Total Height 22 mm
Net Weight 2,39 gr
Model S (8)
Gauge 48 µ
Alloy (*0) 8006 H24/3003 H24 (0)
Lubrication (1)
Holes YES
Diameter 2,5mm
Colors in/out ALU/ALU
Rolled edge 2,0 mm
Temperature -40°C-350°C
#Pcs pro carton: 31350
#Pcs pro bag 31350
#Bags pro carton 1
#Cartons pro palette 1
#Cartons pro layer 1
#Layers Pro palette 1
#Pcs pro palette 31350
Carton dimension L.D.H 1200x800x900mm
Tare carton (kg) 51
Net carton (kg) 74,9265
Gross carton (kg) 125,9265
Gross palette (kg) 155,9265
Palette height (meter) 0,9
Country of Production Belgium

Downloads

Download Technical Sheet SPECLPERF-E-31350
Declaration of Conformity (DoC) Aluminium Foil Containers
