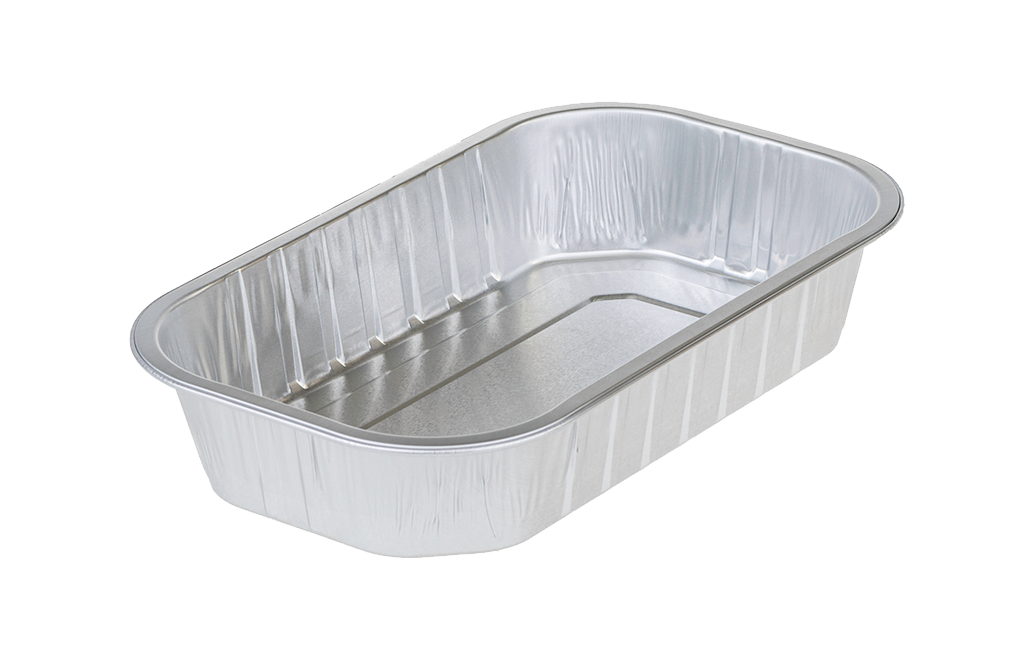

WC0800 300
Back to products
WC1000 330

WC0970 340

234×138 mm

218×122 mm

203×107 mm

42 mm

43 mm

971 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag
EAN code cart./Technifi 5410797910904
EAN code Palet
Volume 971 cc
Top out 234×138 mm
Top in 218×122 mm
Base 203×107 mm
Useful Height 42 mm
Total Height 43 mm
Net Weight 14,97 gr
Model W(7)
Gauge 100 µ
Alloy (*0) 8006/H23 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,2 mm
Temperature -40°C-350°C
#Pcs pro carton: 340
#Pcs pro bag 340
#Bags pro carton 1
#Cartons pro palette 54
#Cartons pro layer 9
#Layers Pro palette 6
#Pcs pro palette 18360
Carton dimension L.D.H 401x251x316mm
Tare carton (kg) 0,4
Net carton (kg) 5,0898
Gross carton (kg) 5,4898
Gross palette (kg) 326,4492
Palette height (meter) 2,04
Country of Production Europe

Downloads

Download Technical Sheet WC0970 340
Declaration of Conformity (DoC) Aluminium Foil Containers
