WO1000 720
Back to products

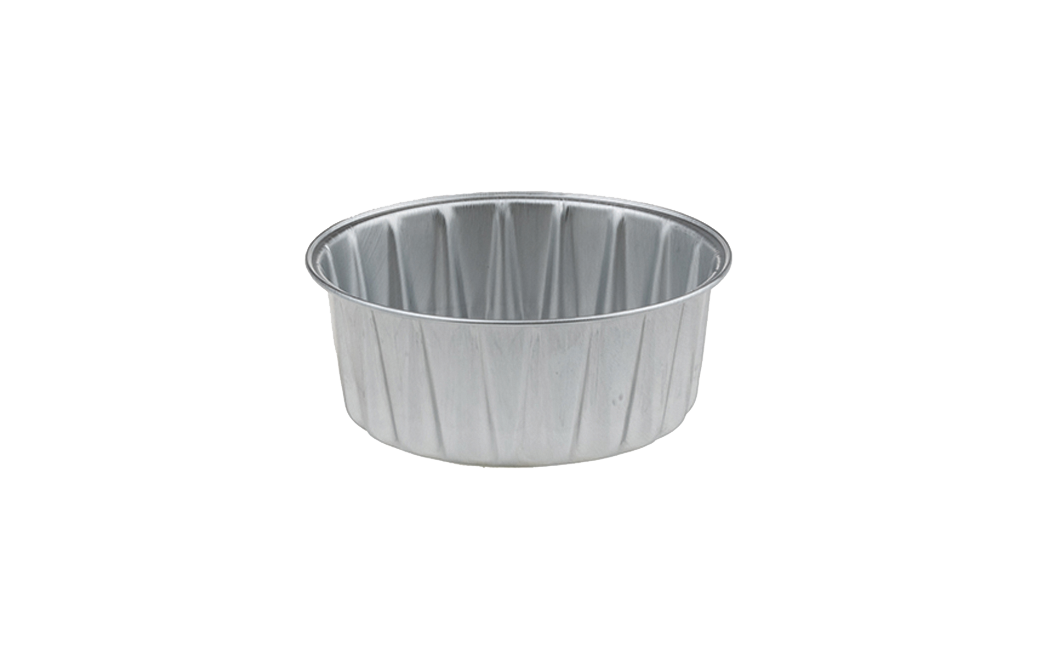

WR0251 10X100

WR0176 18X100

93 mm

86 mm

76 mm

36 mm

38 mm

176 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797900325
EAN code cart./Technifi 5410797900325
EAN code Palet
Volume 176 cc
Top out 93 mm
Top in 86 mm
Base 76 mm
Useful Height 36 mm
Total Height 38 mm
Net Weight 3,99 gr
Model W(7)
Gauge 95 µ
Alloy (*0) 3000/8000 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 1,5 mm
Temperature -40°C-350°C
#Pcs pro carton: 1800
#Pcs pro bag 100
#Bags pro carton 18
#Cartons pro palette 48
#Cartons pro layer 6
#Layers Pro palette 8
#Pcs pro palette 86400
Carton dimension L.D.H 415x340x260mm
Tare carton (kg) 0,8
Net carton (kg) 7,182
Gross carton (kg) 7,982
Gross palette (kg) 413,136
Palette height (meter) 2,23
Country of Production Europe

Downloads

Download Technical Sheet WR0176 18X100
Declaration of Conformity (DoC) Aluminium Foil Containers
