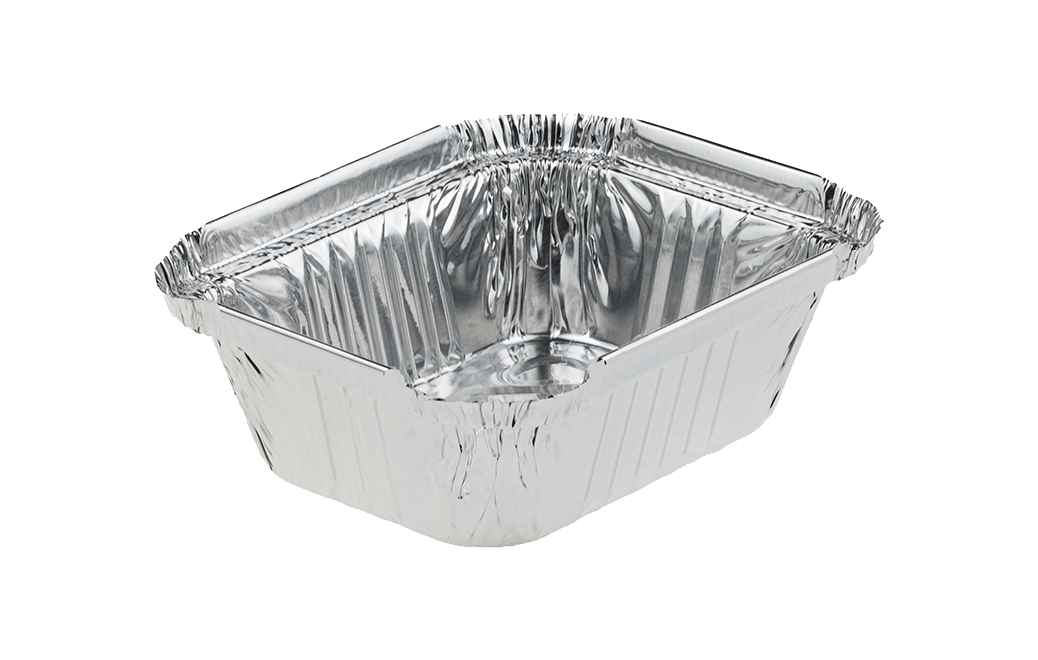

CH0275 10x100
Back to products
CH0470 10x100

CH0275 17×100

128X102 mm

114×86 mm

94×68 mm

33 mm

40 mm

255 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797300026
EAN code cart./Technifi 5410797300002
EAN code Palet
Volume 255 cc
Top out 128X102 mm
Top in 114×86 mm
Base 94×68 mm
Useful Height 33 mm
Total Height 40 mm
Net Weight 3,76 gr
Model CH (2)
Gauge 48 µ
Alloy (*0) 3003 H24 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,3 mm
Temperature -40°C-350°C
#Pcs pro carton: 1700
#Pcs pro bag 100
#Bags pro carton 17
#Cartons pro palette 20
#Cartons pro layer 4
#Layers Pro palette 5
#Pcs pro palette 34000
Carton dimension L.D.H 595x395x450mm
Tare carton (kg) 0,933
Net carton (kg) 6,392
Gross carton (kg) 7,325
Gross palette (kg) 176,5
Palette height (meter) 2,4
Country of Production Belgium

Downloads

Download Technical Sheet CH0275 17×100
Declaration of Conformity (DoC) Aluminium Foil Containers
