CR0230 10X100
Back to products
CR0255 21X100

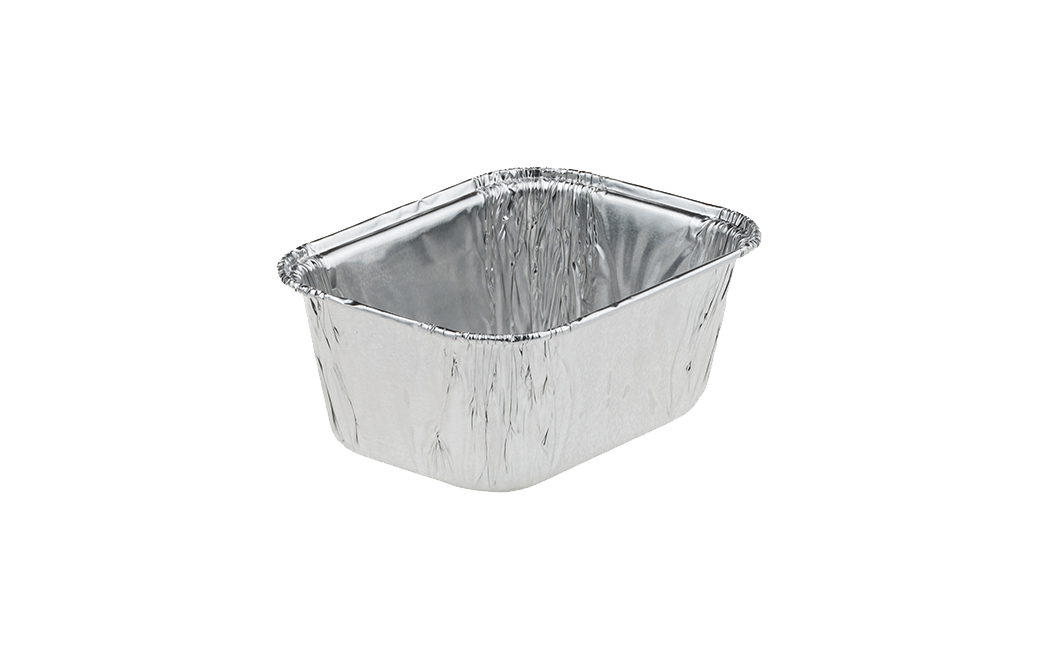

CR0250-9×100

129×87 mm

114×72 mm

96×54 mm

35 mm

36 mm

225 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797201217
EAN code cart./Technifi 5410797201224
EAN code Palet
Volume 225 cc
Top out 129×87 mm
Top in 114×72 mm
Base 96×54 mm
Useful Height 35 mm
Total Height 36 mm
Net Weight 4,26 gr
Model CR (3)
Gauge 60 µ
Alloy (*0) 3000/8000 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,2 mm
Temperature -40°C-350°C
#Pcs pro carton: 900
#Pcs pro bag 100
#Bags pro carton 9
#Cartons pro palette 42
#Cartons pro layer 6
#Layers Pro palette 7
#Pcs pro palette 37800
Carton dimension L.D.H 395X395x295mm
Tare carton (kg) 0,7
Net carton (kg) 3,834
Gross carton (kg) 4,534
Gross palette (kg) 220,428
Palette height (meter) 2,22
Country of Production Europe

Downloads

Download Technical Sheet CR0250-9×100
Declaration of Conformity (DoC) Aluminium Foil Containers
