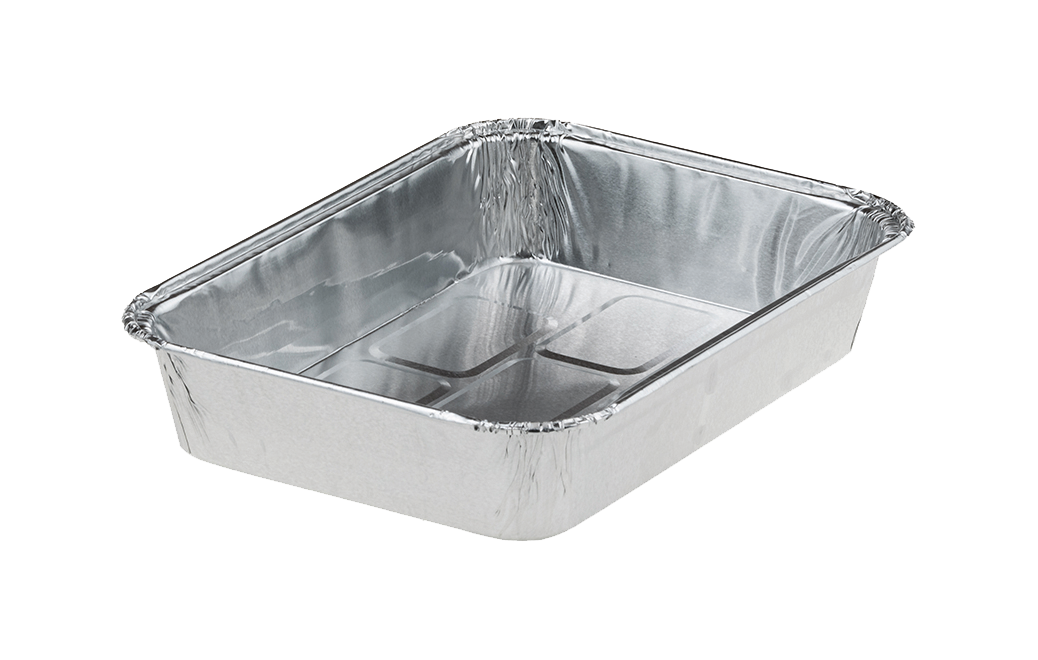

CR0611 12x100
Back to products
CR0650 5X100

CR0635 11X100

187×137 mm

170×120 mm

158×107 mm

34 mm

37 mm

635 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797202429
EAN code cart./Technifi 5410797202405
EAN code Palet
Volume 635 cc
Top out 187×137 mm
Top in 170×120 mm
Base 158×107 mm
Useful Height 34 mm
Total Height 37 mm
Net Weight 7,06 gr
Model CR (3)
Gauge 55 µ
Alloy (*0) 8666 H24 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,6 mm
Temperature -40°C-350°C
#Pcs pro carton: 1100
#Pcs pro bag 100
#Bags pro carton 11
#Cartons pro palette 16
#Cartons pro layer 4
#Layers Pro palette 4
#Pcs pro palette 17600
Carton dimension L.D.H 580x380x560mm
Tare carton (kg) 0,97
Net carton (kg) 7,766
Gross carton (kg) 8,736
Gross palette (kg) 169,776
Palette height (meter) 2,45
Country of Production Europe

Downloads

Download Technical Sheet CR0635 11X100
Declaration of Conformity (DoC) Aluminium Foil Containers
