RR0132 E-16800
Back to products

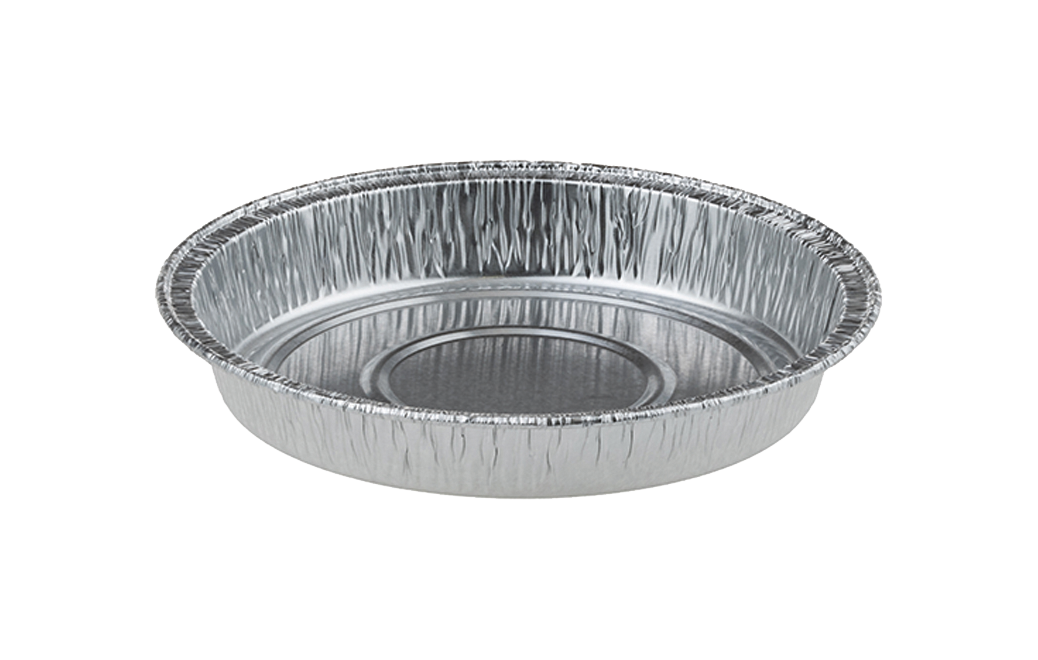

RR0138 18X100

RR0138 15×100

138 mm

123 mm

113 mm

19 mm

22 mm

210 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797103726
EAN code cart./Technifi 5410797103719
EAN code Palet
Volume 210 cc
Top out 138 mm
Top in 123 mm
Base 113 mm
Useful Height 19 mm
Total Height 22 mm
Net Weight 3,38 gr
Model RR (5)
Gauge 48 µ
Alloy (*0) 8006 H24/3003 H24 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,3 mm
Temperature -40°C-350°C
#Pcs pro carton: 1500
#Pcs pro bag 100
#Bags pro carton 15
#Cartons pro palette 20
#Cartons pro layer 4
#Layers Pro palette 5
#Pcs pro palette 30000
Carton dimension L.D.H 590x390x390mm
Tare carton (kg) 0,791
Net carton (kg) 5,07
Gross carton (kg) 5,861
Gross palette (kg) 147,22
Palette height (meter) 2,13
Country of Production Belgium

Downloads

Download Technical Sheet RR0138 15×100
Declaration of Conformity (DoC) Aluminium Foil Containers
