SP175 12X100
Back to products
SP225 10X100

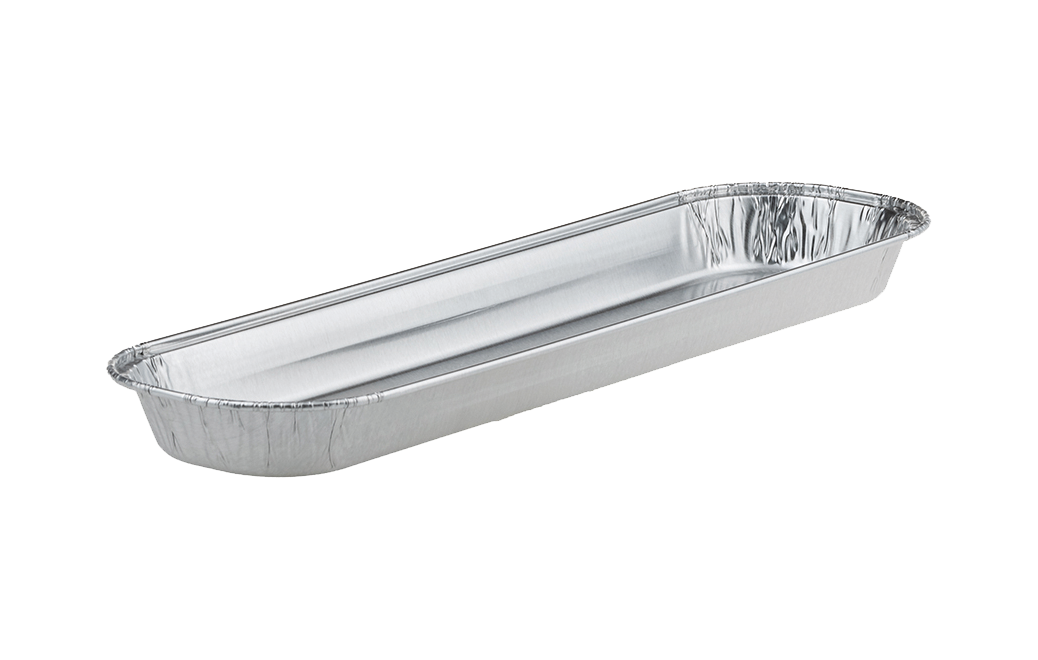

SP225 1000

280×80 mm

267×70 mm

255×54 mm

20 mm

22 mm

325 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag
EAN code cart./Technifi 5410797203006
EAN code Palet
Volume 325 cc
Top out 280×80 mm
Top in 267×70 mm
Base 255×54 mm
Useful Height 20 mm
Total Height 22 mm
Net Weight 8,36 gr
Model S (8)
Gauge 85 µ
Alloy (*0) 8906-0/8666 H25/8156 H24/8006 H24 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,5 mm
Temperature -40°C-350°C
#Pcs pro carton: 1000
#Pcs pro bag 1000
#Bags pro carton 1
#Cartons pro palette 20
#Cartons pro layer 4
#Layers Pro palette 6
#Pcs pro palette 20000
Carton dimension L.D.H 590x390x350mm
Tare carton (kg) 0,96
Net carton (kg) 8,36
Gross carton (kg) 9,32
Gross palette (kg) 216,4
Palette height (meter) 2,25
Country of Production Europe

Downloads

Download Technical Sheet SP225 1000
Declaration of Conformity (DoC) Aluminium Foil Containers
