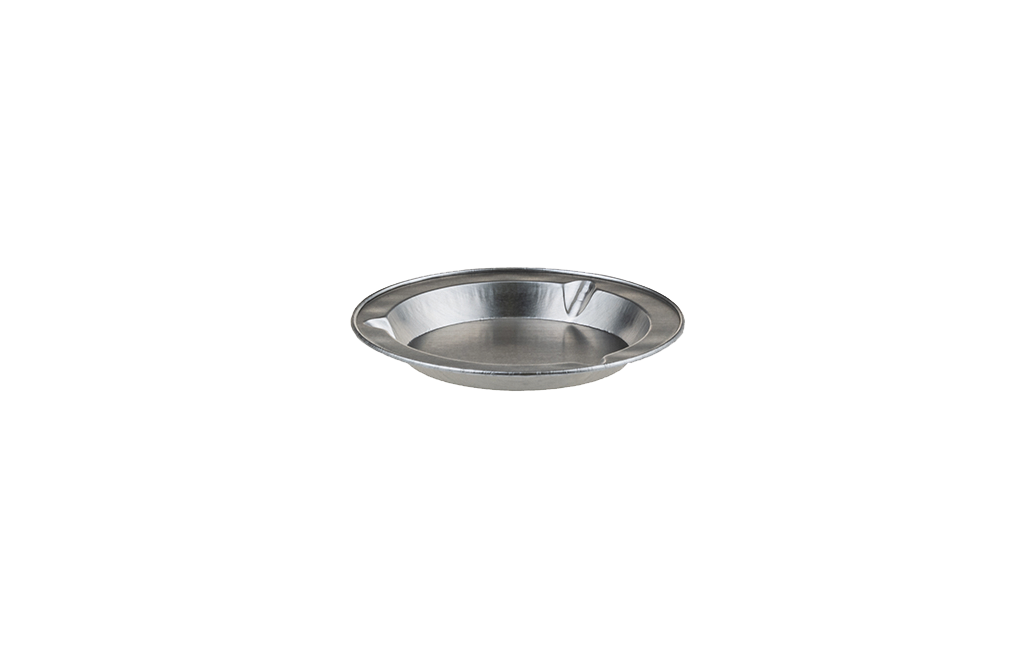

SPAT088 1000
Back to products
SPAT126 1000

SPAT088 10X100

88 mm

70 mm

60 mm

9 mm

11 mm

35 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797620629
EAN code cart./Technifi 5410797620612
EAN code Palet
Volume 35 cc
Top out 88 mm
Top in 70 mm
Base 60 mm
Useful Height 9 mm
Total Height 11 mm
Net Weight 1,6 gr
Model S (8)
Gauge 73 µ
Alloy (*0) 8003/8001/3003 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 1,6 mm
Temperature -40°C-350°C
#Pcs pro carton: 1000
#Pcs pro bag 100
#Bags pro carton 10
#Cartons pro palette 90
#Cartons pro layer 10
#Layers Pro palette 9
#Pcs pro palette 90000
Carton dimension L.D.H 350x240x220mm
Tare carton (kg) 0,15
Net carton (kg) 1,6
Gross carton (kg) 1,75
Gross palette (kg) 187,5
Palette height (meter) 2,3
Country of Production Europe

Downloads

Download Technical Sheet SPAT088 10X100
Declaration of Conformity (DoC) Aluminium Foil Containers
