WC1560 300
Back to products
WC2370 200

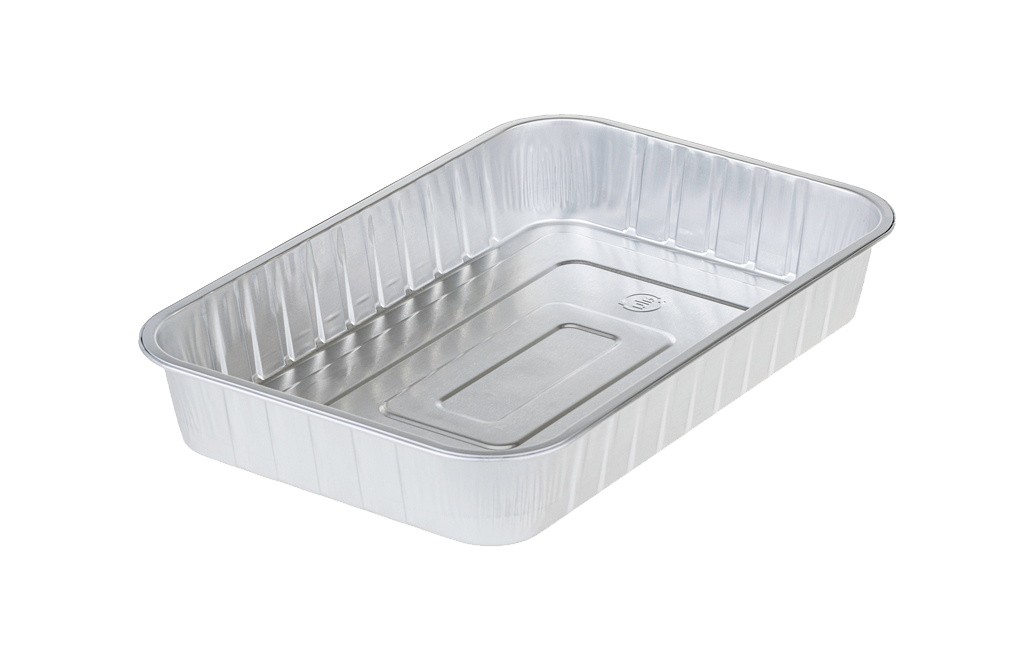

WC2040 4X50

293×193 mm

279×179 mm

263×163 mm

45 mm

45 mm

2040 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797911666
EAN code cart./Technifi 5410797912359
EAN code Palet
Volume 2040 cc
Top out 293×193 mm
Top in 279×179 mm
Base 263×163 mm
Useful Height 45 mm
Total Height 45 mm
Net Weight 29,61 gr
Model W(7)
Gauge 120 µ
Alloy (*0) 8006/H23 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,0 mm
Temperature -40°C-350°C
#Pcs pro carton: 200
#Pcs pro bag 50
#Bags pro carton 4
#Cartons pro palette 48
#Cartons pro layer 8
#Layers Pro palette 6
#Pcs pro palette 9600
Carton dimension L.D.H 400x300x340mm
Tare carton (kg) 0,4
Net carton (kg) 5,922
Gross carton (kg) 6,322
Gross palette (kg) 333,456
Palette height (meter) 2,24
Country of Production Europe

Downloads

Download Technical Sheet WC2040 4X50
Declaration of Conformity (DoC) Aluminium Foil Containers
