WC2370 200
Back to products
WCB0780 12X50

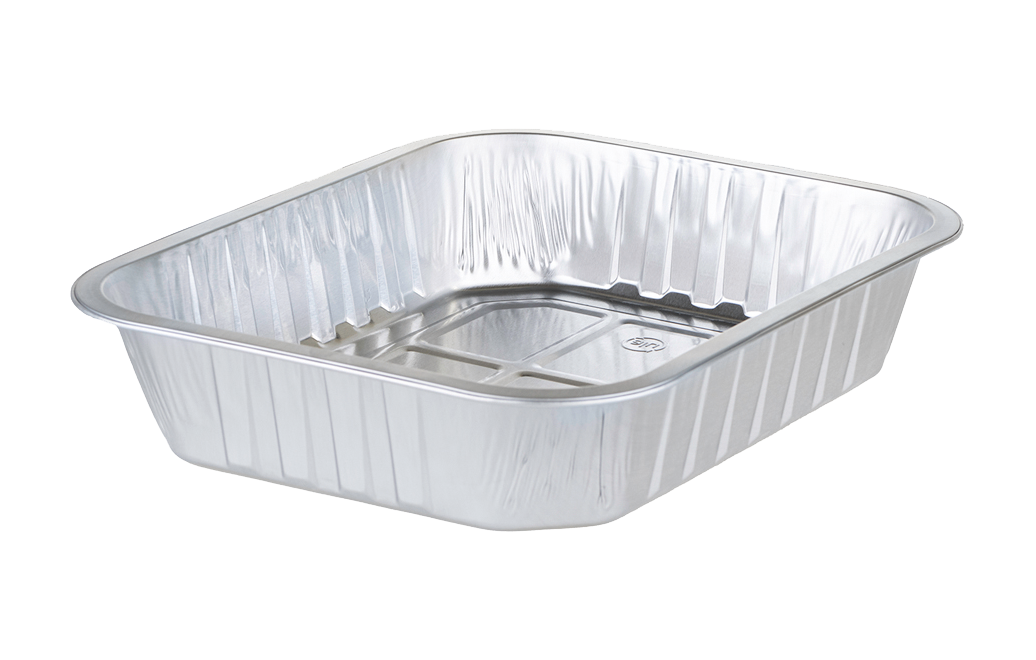

WC3220 140

312×244 mm

288×220 mm

262×194 mm

60 mm

60 mm

3320 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag
EAN code cart./Technifi 5410797911802
EAN code Palet
Volume 3320 cc
Top out 312×244 mm
Top in 288×220 mm
Base 262×194 mm
Useful Height 60 mm
Total Height 60 mm
Net Weight 49,25 gr
Model W(7)
Gauge 150 µ
Alloy (*0) 8006/H23 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,5 mm
Temperature -40°C-350°C
#Pcs pro carton: 140
#Pcs pro bag 140
#Bags pro carton 1
#Cartons pro palette 48
#Cartons pro layer 8
#Layers Pro palette 6
#Pcs pro palette 6720
Carton dimension L.D.H 401X301X316mm
Tare carton (kg) 0,5
Net carton (kg) 6,895
Gross carton (kg) 7,395
Gross palette (kg) 384,96
Palette height (meter) 2,04
Country of Production Europe

Downloads

Download Technical Sheet WC3220 140
Declaration of Conformity (DoC) Aluminium Foil Containers
