CR0450 12X100
Back to products
CR0490 20X100

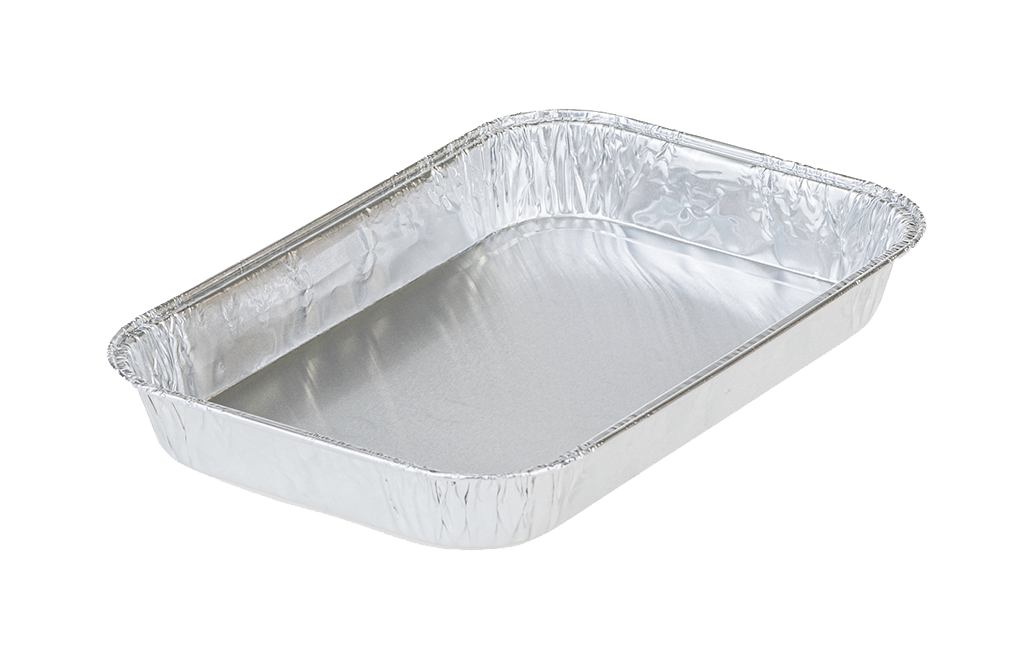

CR0475 7X100

193×130 mm

183×119 mm

172×108 mm

23 mm

26 mm

475 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag 5410797201521
EAN code cart./Technifi 5410797201514
EAN code Palet
Volume 475 cc
Top out 193×130 mm
Top in 183×119 mm
Base 172×108 mm
Useful Height 23 mm
Total Height 26 mm
Net Weight 6,22 gr
Model CR (3)
Gauge 58 µ
Alloy (*0) 8666 H25 / 8006 H24 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,0 mm
Temperature -40°C-350°C
#Pcs pro carton: 700
#Pcs pro bag 100
#Bags pro carton 7
#Cartons pro palette 24
#Cartons pro layer 6
#Layers Pro palette 4
#Pcs pro palette 16800
Carton dimension L.D.H 430x355x475mm
Tare carton (kg) 0,68
Net carton (kg) 4,354
Gross carton (kg) 5,034
Gross palette (kg) 150,816
Palette height (meter) 2,07
Country of Production Belgium

Downloads

Download Technical Sheet CR0475 7X100
Declaration of Conformity (DoC) Aluminium Foil Containers
