RR0138PERF 2200
Back to products
RR0155 16X100

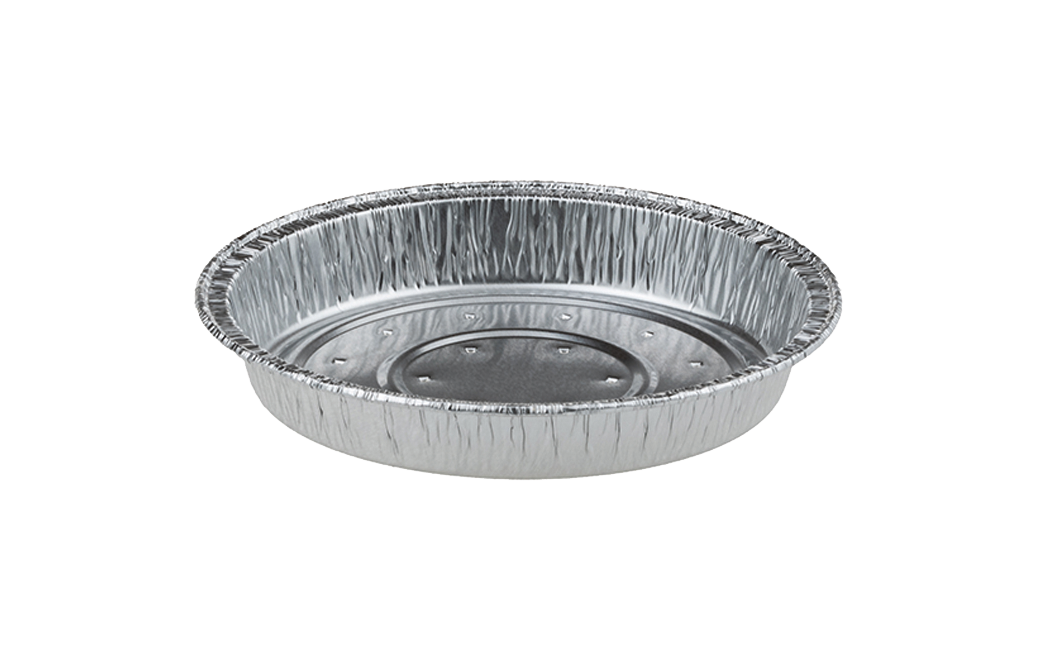

RR0138PERF E-13500

138 mm

123 mm

113 mm

19 mm

22 mm

210 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag
EAN code cart./Technifi 5410797100084
EAN code Palet
Volume 210 cc
Top out 138 mm
Top in 123 mm
Base 113 mm
Useful Height 19 mm
Total Height 22 mm
Net Weight 3,33 gr
Model RR (5)
Gauge 48 µ
Alloy (*0) 8006 H24/3003 H24 (0)
Lubrication (1)
Holes YES
Diameter 2mm
Colors in/out ALU/ALU
Rolled edge 2,3 mm
Temperature -40°C-350°C
#Pcs pro carton: 13500
#Pcs pro bag 13500
#Bags pro carton 1
#Cartons pro palette 1
#Cartons pro layer 1
#Layers Pro palette 1
#Pcs pro palette 13500
Carton dimension L.D.H 1200x800x900mm
Tare carton (kg) 51
Net carton (kg) 44,955
Gross carton (kg) 95,955
Gross palette (kg) 125,955
Palette height (meter) 0,9
Country of Production Belgium

Downloads

Download Technical Sheet RR0138PERF E-13500
Declaration of Conformity (DoC) Aluminium Foil Containers
