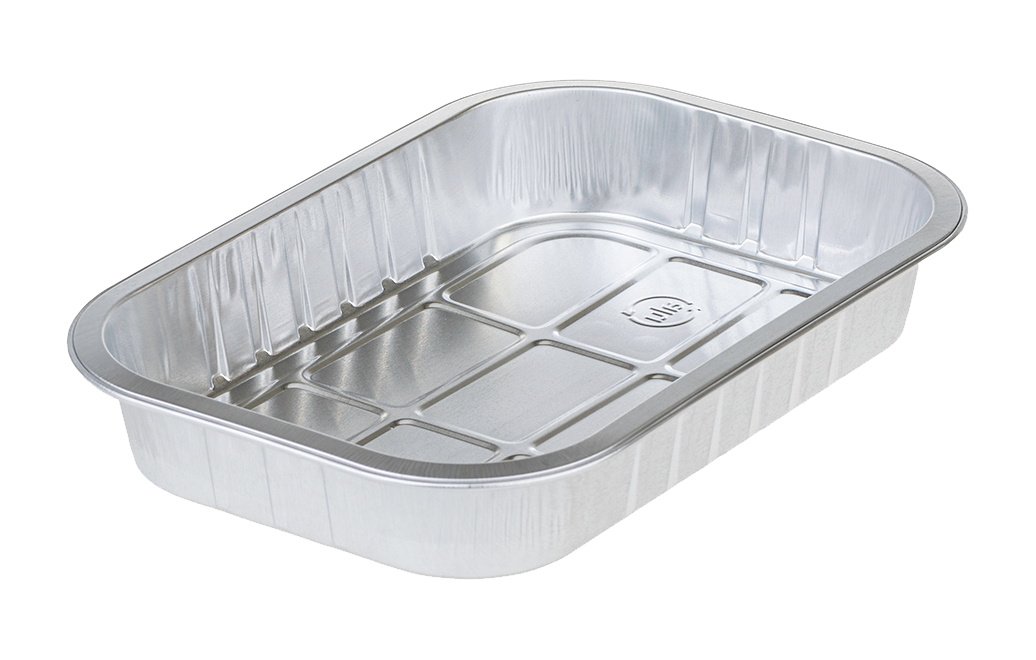

WC0760 1000
Back to products
WC0970 340

WC0800 300

220×150 mm

202×132 mm

190×120 mm

34 mm

34 mm

801 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag
EAN code cart./Technifi 5410797910805
EAN code Palet
Volume 801 cc
Top out 220×150 mm
Top in 202×132 mm
Base 190×120 mm
Useful Height 34 mm
Total Height 34 mm
Net Weight 14,18 gr
Model W(7)
Gauge 100 µ
Alloy (*0) 8006/H23 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,2 mm
Temperature -40°C-350°C
#Pcs pro carton: 300
#Pcs pro bag 300
#Bags pro carton 1
#Cartons pro palette 54
#Cartons pro layer 9
#Layers Pro palette 6
#Pcs pro palette 16200
Carton dimension L.D.H 401x251x316mm
Tare carton (kg) 0,4
Net carton (kg) 4,254
Gross carton (kg) 4,654
Gross palette (kg) 281,316
Palette height (meter) 2,04
Country of Production Europe

Downloads

Download Technical Sheet WC0800 300
Declaration of Conformity (DoC) Aluminium Foil Containers
