WO0900 7X100
Back to products
WR0176 18X100

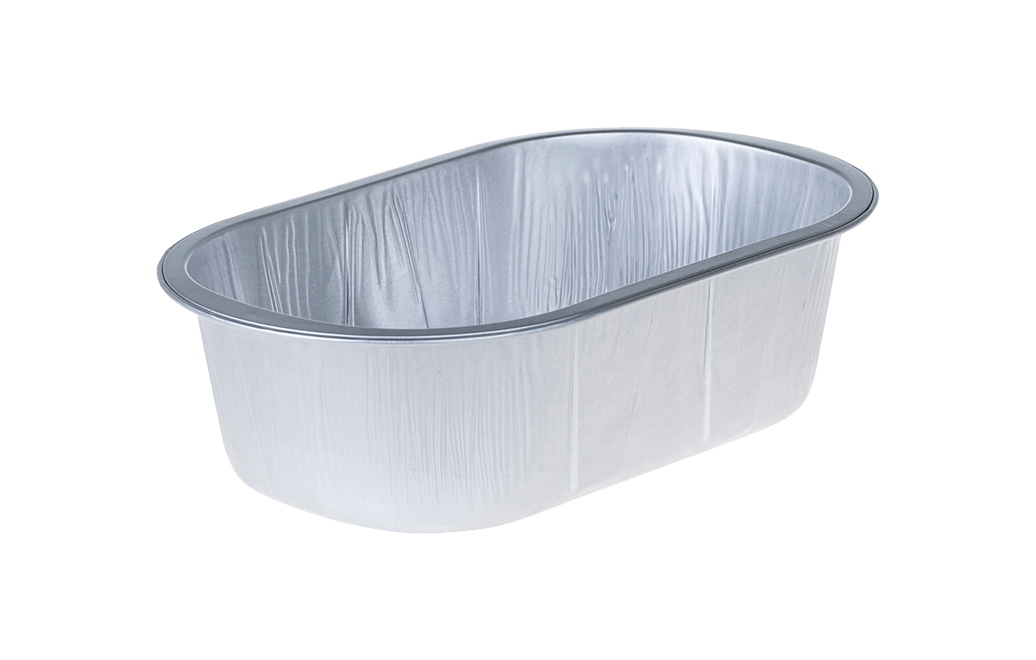

WO1000 720

218×126 mm

194×110 mm

168×92 mm

60 mm

60 mm

997 cc

Download Technical Sheet
  • Technical Sheet
  • Downloads

Technical Sheet

EAN code Bag
EAN code cart./Technifi 5410797200104
EAN code Palet
Volume 997 cc
Top out 218×126 mm
Top in 194×110 mm
Base 168×92 mm
Useful Height 60 mm
Total Height 60 mm
Net Weight 14,6 gr
Model W(7)
Gauge 105 µ
Alloy (*0) H22 (0)
Lubrication (1)
Holes NO
Diameter
Colors in/out ALU/ALU
Rolled edge 2,0 mm
Temperature -40°C-350°C
#Pcs pro carton: 720
#Pcs pro bag 720
#Bags pro carton 1
#Cartons pro palette 30
#Cartons pro layer 5
#Layers Pro palette 6
#Pcs pro palette 21600
Carton dimension L.D.H 496x401x316mm
Tare carton (kg) 0,6
Net carton (kg) 10,512
Gross carton (kg) 11,112
Gross palette (kg) 363,36
Palette height (meter) 1,73
Country of Production Europe

Downloads

Download Technical Sheet WO1000 720
Declaration of Conformity (DoC) Aluminium Foil Containers
